Heating system heat exchanger, location/task/function - GF83.20-P-2108T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 211.0/2/6

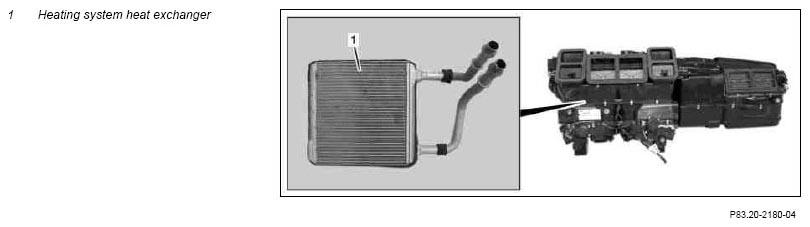

| Heating system heat exchanger, location | The heater heat exchanger (1) is located in the AC housing behind the instrument panel. | |
| Heating system heat exchanger, task | The heater heat exchanger (1) serves to heat up the air flow which is led into the vehicle interior via various defroster, ventilation and heater nozzles. | |
| Heating system heat exchanger function | GF83.20-P-2101-01P |
