Evaporator temperature sensor, location/task/function - GF83.57-P-2109T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 211.0/2/6

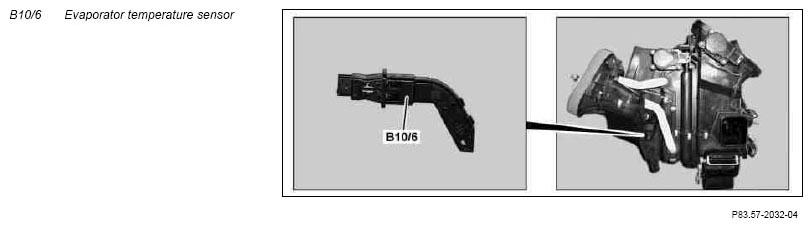

| Temperature sensor evaporator core, position | The evaporator temperature sensor (B10/6) is located in the air flow downstream of the left evaporator in the evaporator housing. | |
| Evaporator temperature sensor, task | The evaporator temperature sensor (B10/6) determines the refrigerant temperature at the evaporator air outlet, in order to prevent the evaporator from icing up. | |
| Evaporator temperature sensor, function | GF83.57-P-2102-02P |
