Evaporator location/task/design/function - GF83.40-P-2121T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 211.0/2/6

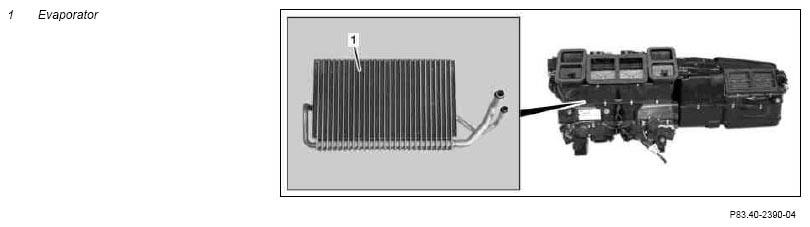

| Evaporator, location | The evaporator (1) is in the air conditioning box behind the instrument panel. | |
| Evaporator, purpose | The evaporator (1) is used to cool, dehumidify and clean the interior air. | |
| Evaporator, design | Disk evaporator made from soldered semicircular disks with corrugated ribs. | |
| Evaporator, function | GF83.40-P-2121-01P |
