Condenser, location/task/function - GF83.40-P-2152T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 211.0/2/6

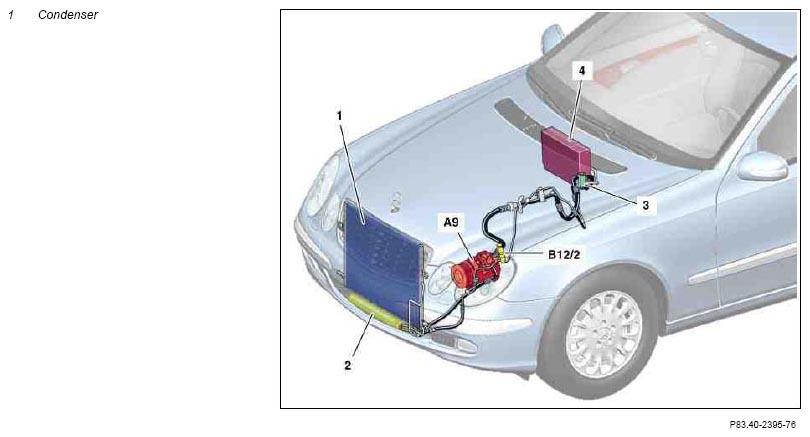

| Condenser position | The condenser (1) is located behind the radiator grille directly in front of the radiator. | |
| Condenser task | The condenser (1) ensures that the refrigerant coming from the evaporator changes state from gas to liquid. | |
| Condenser function | GF83.40-P-2120-01P |
