Blower, location/task/function - GF83.10-P-2140T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 211.0/2/6

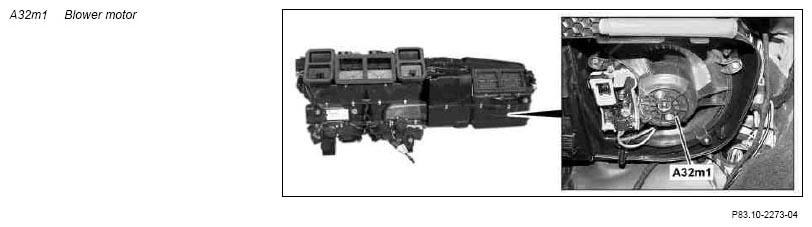

| Blower, location | The blower motor (A32m1) is located on the right of the AC housing. | |
| Blower, task | The blower motor (A32m1) draws in fresh air or recirculates the interior air depending on the position of the fresh air flap and recirculated air flap. In engine residual heat utilization mode the blower motor (A32m1) recirculates the interior air. | |
| Blower, function | GF83.10-P-2102-02T |
