Belt pulley, location/task/design/function - GF83.55-P-2103T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 211.0/2/6

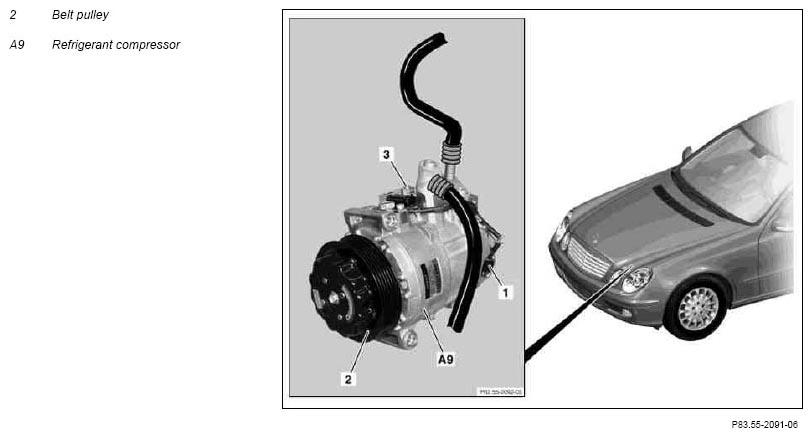

| Belt pulley, position | The belt pulley (2) is located at the front of the drive shaft on the refrigerant compressor (A9). | |
| Belt pulley, purpose | The belt pulley (2) drives the refrigerant compressor (A9). In addition the pulley (2) is also used as a torque damper and a torque limiter. | |
| Belt pulley, design | GF83.55-P-2103-03P | |
| Belt pulley, function | GF83.55-P-2103-02P |
