Air humidity sensor, location/task/design/function - GF83.30-P-2125T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6 up to 31.8.06 except CODE (581) Comfort automatic air conditioning
Shown on model 211.0

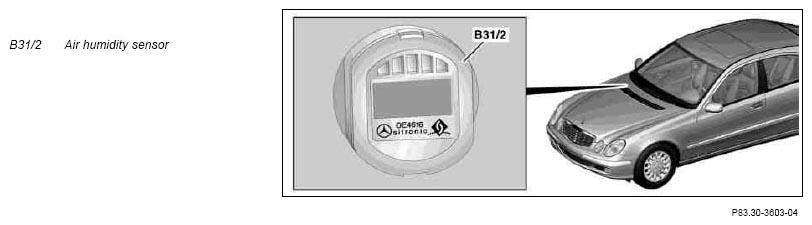

| Air humidity sensor, position | The air humidity sensor (B31/2) is located in the air flow upstream of the fresh air and air recirculation flap on the air conditioner housing. | |
| Air humidity sensor, task | The air humidity sensor (B31/2) is used to record the air humidity of the aspirated air. | |
| Air humidity sensor, design | The air humidity sensor (B31/2) basically consists of the following parts:
|
|
| Air humidity sensor, function | GF83.30-P-2125-01T |
