Correction programming, function - GF07.61-P-3031M
ENGINES 275.953 in MODEL 216, 221 up to Model Year 08/modification year 07
ENGINES 275.982 in MODEL 216, 221 up to Model Year 08/modification year 07
Shown on model 215, 220, 230, 240
Different performance maps for the engine control can be activated with the correction programming function in the ME-SFI control unit.

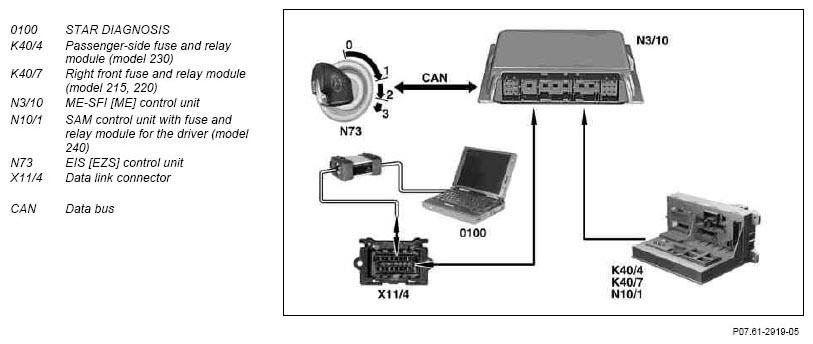

The programming can be carried out with STAR Diagnosis when ignition is "ON", via the data link connector.
The following performance maps can be influenced:
- Ignition maps for adapting to different fuel quality (except
)
- Mixture maps for enriching the air/fuel mixture in different operating states (except
- Idle speed for automatic transmission and drive position engaged
- Temperature correction for switching electrical suction fan on and off.
| ME-SFI control unit, location/task/design/function | GF07.61-P-5000M |
