ABC Control Module Connector End View (N51/2)

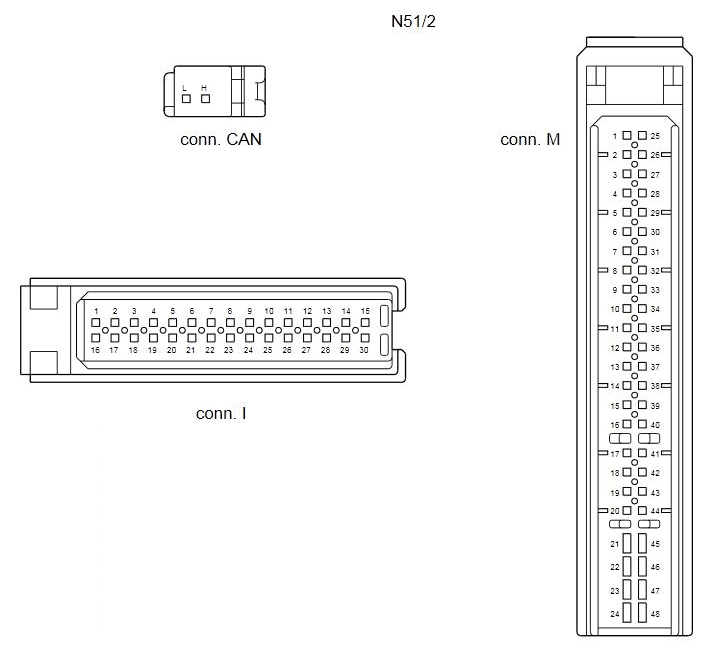

Fig 1: ABC Control Module Connector End View (N51/2)

G11072674

Courtesy of MERCEDES-BENZ USA
