Remove/install ignition coil module - AR15.12-P-1100LA

ENGINES 275 in MODELS 215, 216, 220, 221, 230

Shown on model 220.176

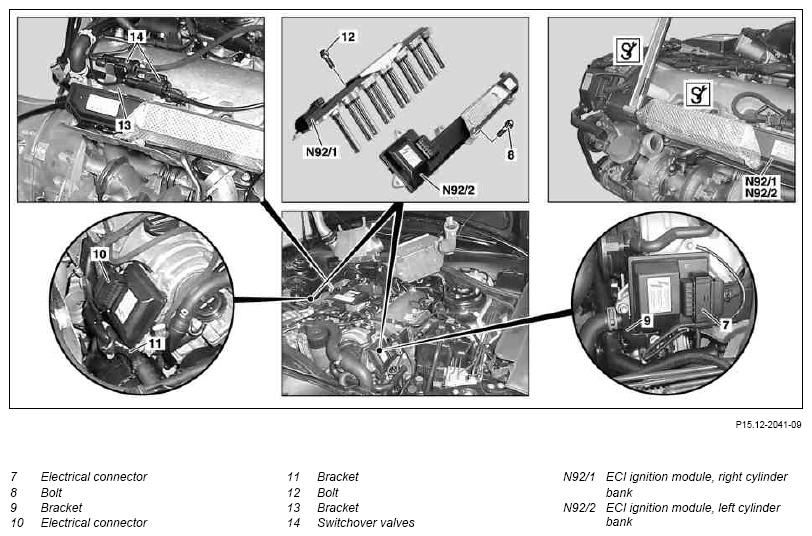

Fig 1: Identifying Ignition Coil Module Remove/Install Components - Shown On Model 220.176 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

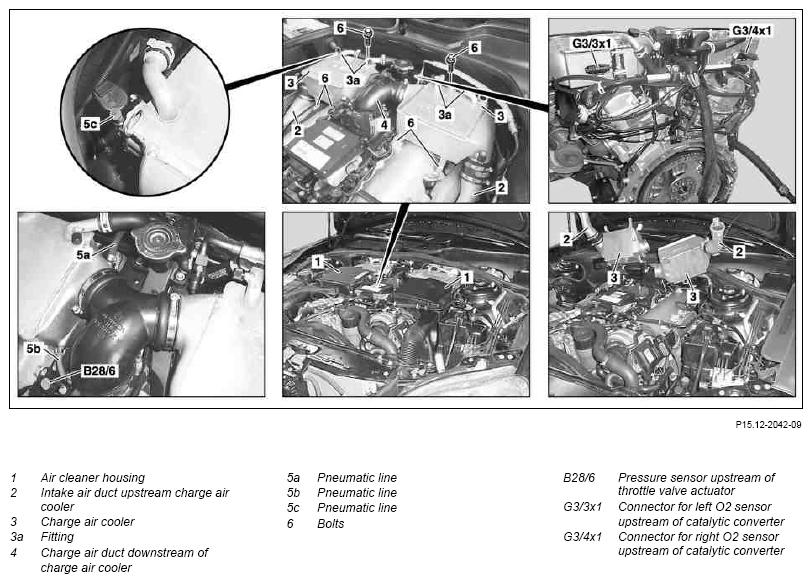

Fig 2: Identifying Ignition Coil Module Remove/Install Components - Shown On Model 220.176 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death caused by contact with parts conducting high voltages.	Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system	AS15.10-Z-0001-01A
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Notes on avoiding damage to ignition system		AH15.10-P-0002-01L
1	Remove engine trim panel	Engine 275.95	AR01.10-P-2405LA
1	Remove engine trim panel	Engine 275.98	AR01.10-P-2405IM
2	Remove left or right air filter housing (1)	Model 215, 216, 220, 221, 230 without code (P99) Special Model "AMG Black Series"	AR09.10-P-1150LA
3	Remove left or right charge air duct (2) upstream of charge air cooler (3) on turbocharger		*BA09.41-P-1001-02B
4	Remove charge air duct (4) downstream charge air cooler (3) at left or right charge air cooler (3)		AR09.50-P-8680H
5	Slacken left or right charge air cooler (3), to do so unscrew bolts (6)		*BA09.41-P-1001-03A
6	Disconnect pneumatic line (5a) on charge air cooler (3).	When removing the ECI ignition module, right cylinder bank (N92/1). Check pneumatic line (5a) and hose clamp for damage and replace if required.
7	Remove pneumatic line (5c) at charge air cooler (3).	When removing the ECI ignition module, right cylinder bank (N92/1). Install new cable ties.
8	Disconnect electrical connector at pressure sensor upstream of throttle valve actuator (B28/6) and remove	When removing ECI ignition module, right cylinder bank (N92/1). The pneumatic line (5b) is bonded with the support to charge air cooler (3). This combination must not be separated, otherwise leakage may occur.
9	Unclip connector of left O2 sensor upstream of catalytic converter (G3/3x1) or connector of right O2 sensor upstream of catalytic converter (G3/4x1) from rear retaining spring at charge air cooler (3)
10	Fold left or right charge air cooler (3) to the top and hang with hooks onto engine hood	Close air outlet at turbocharger, otherwise parts could fall in and lead to engine damage. Install new O-ring.
11	Detach left bracket (9) or right bracket (11)		*BA15.12-P-1002-01D
12	Remove switchover valve (14) and detach bracket (13)	When removing the ECI ignition module, right cylinder bank (N92/1).
13	Disconnect electrical connector (7 or 10) from ECI ignition module, left cylinder bank (N92/2) or from ECI ignition module, right cylinder bank (N92/1)
14	Remove bolt (8 or 12) for ECI ignition module, left cylinder bank (N92/2) or for ECI ignition module, right cylinder bank (N92/1)		*BA15.12-P-1001-01D
15	Remove ECI ignition module, left cylinder bank (N92/2) or ECI ignition module, right cylinder bank (N92/1) with a special tool	Position special tool on two points and carefully pry off ECI ignition module, left cylinder bank (N92/2) or ECI ignition module, right cylinder bank (N92/1).
			Fig 4
			Fig 3
16	Install in the reverse order
17	Read out fault memory with STAR DIAGNOSIS and erase if necessary
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
