Charge air temperature sensor, location/task/function - GF07.04-P-5038M

ENGINES 275.950 in MODEL 215, 220

ENGINES 275.951 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.953 in MODEL 216, 221 up to Model Year 08 /modification year 07

ENGINES 275.954 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.980 in MODEL 215, 220

ENGINES 275.981 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.982 in MODEL 216, 221 up to Model Year 08 /modification year 07

ENGINES 285.950 in MODEL 240

ENGINES 285.980 in MODEL 240

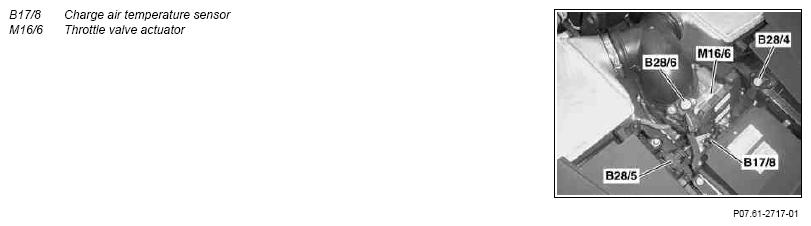

Fig 1: Identifying Charge Air Temperature Sensor And Throttle Valve Actuator

Courtesy of MERCEDES-BENZ USA

Charge air temperature sensor, location	In the intake manifold upstream of the throttle valve actuator
Charge air temperature sensor, task	Measurement of charge air temperature. The signal is (together with the signal of the intake manifold pressure) used to compute the air mass. In addition the charge air temperature sensor (B17/8) monitors the function of the charge air cooling system
Charge air temperature sensor, function	The NTC resistor integrated in the charge air temperature sensor (B17/8) alters its ohmic resistance in line with the charge air temperature.
