ME-SFI warm-up control, function - GF07.61-P-3022M

ENGINES 275.950 in MODEL 215, 220

ENGINES 275.951 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.953 in MODEL 216, 221 up to Model Year 08 /modification year 07

ENGINES 275.954 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.980 in MODEL 215, 220

ENGINES 275.981 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.982 in MODEL 216, 221 up to Model Year 08 /modification year 07

ENGINES 285.950 in MODEL 240

ENGINES 285.980 in MODEL 240

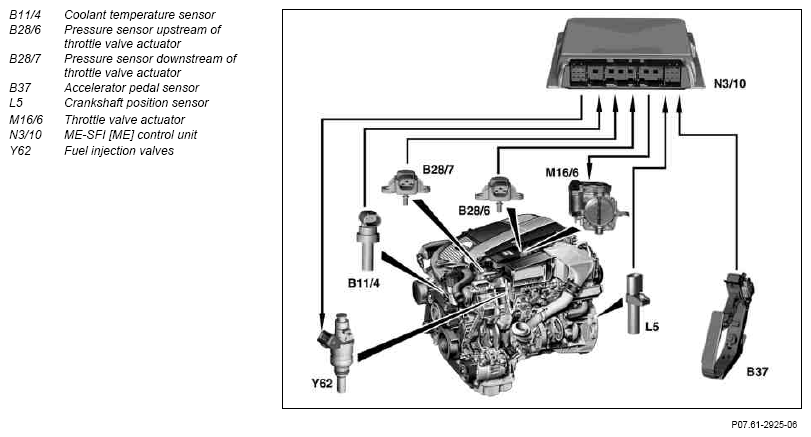

Fig 1: Identifying ME-SFI Warm-Up Control Function Diagram

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying ME-SFI Warm-Up Control Enrichment Rate Diagram

Courtesy of MERCEDES-BENZ USA

Task

After start- and post-start enrichment the air/fuel mixture is further enriched by the warming-up control as part of the air/fuel mixture precipitates on the parts of the engine which are still cold.

The additional quantity of fuel is metered to the engine by the ME control unit (N3/10) in line with the performance map. The injection time is extended accordingly for this purpose.

The warming-up enrichment is dependent on:

Coolant temperature
Charge pressure control
Engine speed
Engine load
Idle speed/part load operation
Correction programming with STAR DIAGNOSIS

ME-SFI control unit, location/task/design/ function	GF07.61-P-5000M
Coolant temperature sensor, location/task/ design/function	GF07.04-P-5026M
Crankshaft position sensor, location/task/ design/function	GF07.04-P-4116M
Pressure sensor downstream of throttle valve actuator, location/task/function	GF07.04-P-5049M
Accelerator pedal sensor, location/task/ design/function	GF30.20-P-4010M
Throttle valve actuator, location/task/design/ function	GF30.22-P-4101M
Boost pressure control, function	GF09.40-P-3000M
Fuel injection valve, location/task/design/ function	GF07.03-P-5004M
