Turning Angle Sensor, Component Description - GF28.19-D-3204HA
MODEL 906.131/133/135/153/155/231/233/235/253/255/631/633/635/637/653/655/657/731/733/735 with CODE (ZG1) Engageable all-wheel drive
MODEL 906.131/133/135/153/155/231/233/235/253/255/631/633/635/637/653/655/657/731/733/735 with CODE (ZG3) Gear reduction for all-wheel drive
MODEL 906.131/133/135/153/155/231/233/235/253/255/631/633/635/637/653/655/657/731/733/735 with CODE (ZG4) Permanent all-wheel drive with gear reduction

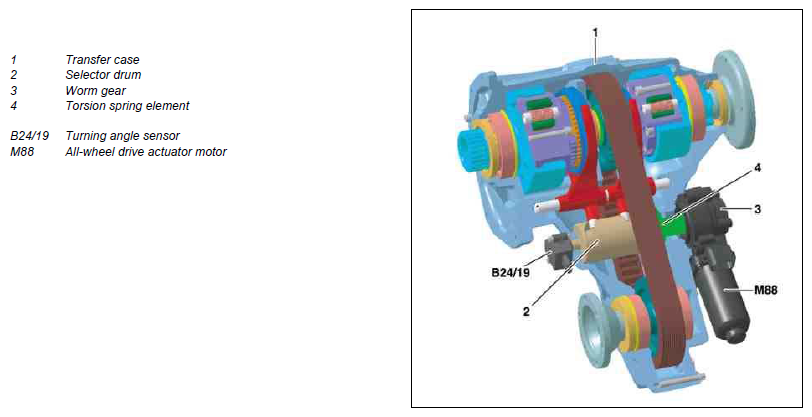

Location, shown with code (ZG3) Gear reduction for all-wheel drive
Task
The task of the turning angle sensor is to detect the actual position of the selector drum.
Design
The turning angle sensor is a Hall sensor.
The all-wheel drive control unit (N133) determines the actual position of the selector drum from the transmitted Hall signal.
