Stop lamp switch, location/task/function - GF42.10-P-4000A
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 129, 140, 163, 168, 170, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240, 460, 461, 463
| Stop lamp switch, location | GF42.10-P-4000-01A | ||
| Stop lamp switch, task | The stop lamp switch (S9/1) passes a signal to the stop lamps indicating that the driver has pressed the brake pedal and also passes a signal to inform different electronic systems (e.g. BAS, ETS, ASR, ESP, CC, IFI, DFI, CDI, ME-SFI) of the brake actuation. | ||

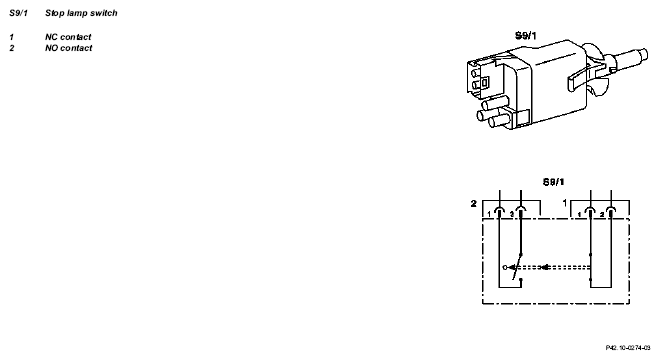

| Stop lamp switch, function | The stop lamp switch (S9/1) functions in two ways: It functions as a NO contact (2) for the stop lamp and as a NC contact (1) for control modules. |
