Component description for radar sensors control unit - GF30.30-P-3301LE
MODEL 216.3 up to 31.8.10 with CODE (233) Distronic Plus except CODE (237) Active Blind Spot Assist except CODE (238) Active Lane Keeping Assist as of model year 2009/YoM 08
MODEL 221.0 /1 up to 31.8.10 with CODE (233) Distronic Plus except CODE (237) Active Blind Spot Assist except CODE (238) Active Lane Keeping Assist as of model year 2009/YoM 08

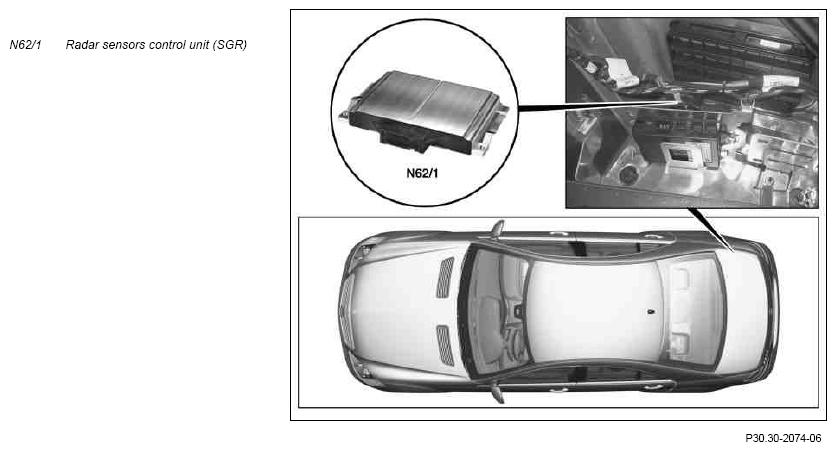

RH trunk shown on model 221
Location
The radar sensors control unit is located at the bottom right side of the luggage compartment.
Task
The tasks of the radar sensors control unit include controlling the following functions:
- Variable Speed Limiter (except code (494) USA version)
- Permanent Speed Limiter
- Automatic deactivation of the radar sensor system (for the Western European version)
- DISTRONIC PLUS
- Distance warning system
- BAS PLUS (Brake Assist System PLUS)
- PRE-SAFE brake
- Park Assist (except model 221 as of AEJ 09 model refinement package)
- Parking Guidance (except model 221 as of AEJ 09 model refinement package)
- Blind Spot Assist (for code (234) Blind Spot Assist)
The additional tasks of the radar sensors control unit are:
- Actuation and evaluation of front short range sensor
- Evaluation of the long range radar
The radar sensors control unit is the unit that evaluates the short range radar sensors and the long range radar.
To do this the from and rear short range sensor up YoM 09 model refinement package are interconnected respectively via a sensor-CAN (CAN S) and from YoM 09 model refinement package via a joint sensor CAN with the radar sensors control unit. The long range sensor is networked via the vehicle dynamics CAN (CAN H) with the radar sensors control unit.
The radar sensors control unit also receives information (such as own vehicle speed and driver acceleration requests) from other control over the chassis CAN (CAN E) and dynamics CAN.
After evaluating all sensor data and input signals, the radar sensors control unit takes full control of the vehicle longitudinal movements, by sending accelerate, decelerate, brake or gearshift signals via the chassis CAN.
The radar sensors control unit also actuates warning tones and indicators on the instrument cluster (A1).
Input and output signals
The following input signals and output signals are evaluated and sent by the radar sensors control unit.
- Direct input signals
- Direct output signals
- CAN input signals from the chassis CAN
- CAN output signals to the chassis CAN
- CAN input signals from the dynamics CAN
- CAN output signals to the dynamics CAN
- CAN input signals from the sensor CAN
- CAN output signals to the sensor CAN
Direct input signals
- Circuit 15 (up to YoM 09 model refinement package)
- Circuit 30
- Circuit 31
Direct output signals
- None
CAN input signals from the chassis CAN
- Accelerator pedal status
- Drive position status
- Parking brake status
- Steering angle status
- Navigation position data (for the Western Europe version)
- Driver request via the CC [TPM] push button (S40/4)
- Driver request via the menu settings in instrument cluster
- Flasher status
- Trailer status (for code (550) Trailer hitch)
CAN output signals to the chassis CAN
- Switching request
- Torque request
- Request from DTR warning lamp (A1e59)
- Request from electronic speedometer (A1p8)
- Request from multifunction display (A1p13)
- Request from readiness and warning indicator of the Blind Spot Assist on the left and right (M21/1e2, M21/2e2)
- Request for acoustic warnings
CAN input signals from the dynamics CAN
- Service brake, status
- Yaw rate status
- Own vehicle speed
- Status of Electronic Stability Program (ESP)
- Long range radar radar data
- Diagnostic data from long range radar
CAN output signals to the dynamics CAN
- Brake request
- Radar request from long range radar
- Diagnosis request from long range radar
CAN input signals from the sensor CAN
- Radar data from short range sensors
- Diagnostic data from short range sensors
CAN output signals to the sensor CAN
- Radar request from short range sensor
- Diagnosis request from short range sensors
Design
Due to the high performance of the radar sensors control unit, it is equipped with two controllers (clock frequency 40 MHz each).
| Radar sensors control unit wiring diagram | N62/1 Model 216 up to AEJ 09 |
PE30.30-P-2102-97CAA | |
| Model 216 as of modification year 09 | PE30.30-P-2102-97CAC | ||
| Model 221 up to AEJ 09 model refinement package | PE30.30-P-2102-97SAA | ||
| Model 221 as of AEJ 09 model refinement package | PE30.30-P-2102-97SAC |
