Call up stored seat position, function - GF91.29-P-2003SXA
MODEL 221.0 /1 with CODE (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints with CODE (276) Memory in rear up to Model Year 8 Fondsitze

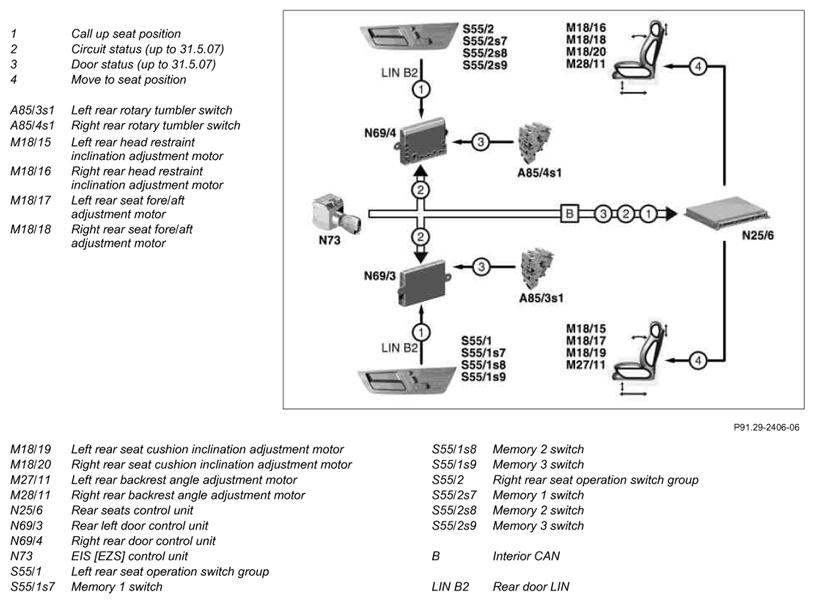

Shown on vehicle up to 31.5.07
Function requirements
- Circuit 15R On or respective vehicle door open (up to 31.5.07)
Function
To be able to move to a stored seat position, memory 1, 2 or 3 in the seat operation seat group must be pressed and held depressed until the stored seat position has been reached.
If the button is released, the adjustment procedure is terminated. The adjustment request is read in by the door control unit via the rear door LIN and forwarded to the rear seats control unit via the interior CAN. The rear seats control unit actuates the corresponding motors.
| Rear seat adjustment motor, component description | M18/15, M18/16, M18/17, M18/18, M18/19, M18/20, M27/11 and M28/11 | GF91.29-P-5215SXA | |
| Rear seats control unit, component description | N25/6 | GF91.29-P-5250SXA | |
| Rear door control unit, component description | N69/3, N69/4 | GF72.29-P-6020SX | |
| Electronic ignition/starter switch control unit (EIS), component description | N73 | GF80.57-P-6000SX | |
| Rear seat adjustment switch group, component description | S55/1, S55/2 | GF91.29-P-5216SXA |
