Regulating valve component description - GF27.60-P-5140GE

TRANSMISSION 722.6 in MODEL 204.0, 216, 221 up to Model Year 8

Control spool control valve pressure

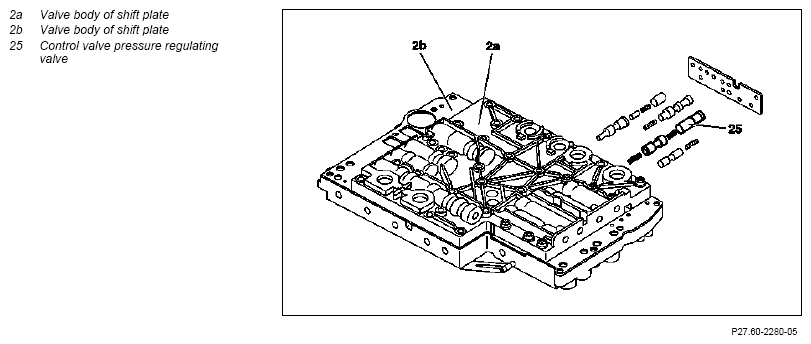

Fig 1: Identifying Valve Body Of Shift Plate And Control Valve Pressure Regulating Valve

Courtesy of MERCEDES-BENZ USA

Location

The regulating valve control valve pressure is located in the valve housing of the shift plate.

Task

It regulates the control valve pressure.

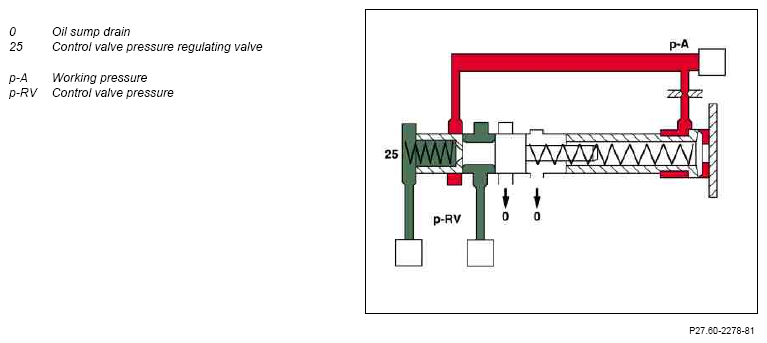

Fig 2: Identifying Control Valve Pressure Regulating Valve Function Diagram

Courtesy of MERCEDES-BENZ USA

Function

The control valve pressure is regulated on the regulating valve control valve pressure depending on the working pressure up to maximum pressure.
