Electrical function schematic for steering column easy entry/exit adjustment - PE46.15-P-2051-97MAA

Code:	Designation:	Position:
1	Circuit 15, status	5F
2	Rotary tumbler microswitch, status	7E
2	Rotary tumbler microswitch, status	5C
3	Steering column motor, actuation	7J
4	Multifunction steering wheel button group, signal	15E
4	Multifunction steering wheel button group, signal	16B
4	Multifunction steering wheel button group, signal	19D
5	Easy entry/exit, status	8F
6	Crash, signal	8E
6	Crash, signal	12B
A1	Instrument cluster	14F
A8/1	Transmitter key	3F
CAN B	Interior CAN	4F
CAN B	Interior CAN	10F
CAN B	Interior CAN	6D
CAN B	Interior CAN	14D
CAN B	Interior CAN	11C
CAN C	Engine compartment CAN	10B
CAN C	Engine compartment CAN	16C
LIN E1	Steering LIN	18D
M14/6	Left front door CL [ZV] motor	4C
M20/2	Steering column up/down motor	7L
N10/8	Rear SAM control unit	7B
N2/7	Restraint systems control unit	9B
N32/1	Driver front seat adjustment control unit with memory	7F
N73	EIS [EZS] control unit	2F
N80	Steering column module	19B
N93	Central gateway control unit	14B
S110	Left multifunction steering wheel button group	18F
S111	Right multifunction steering wheel button group	20F

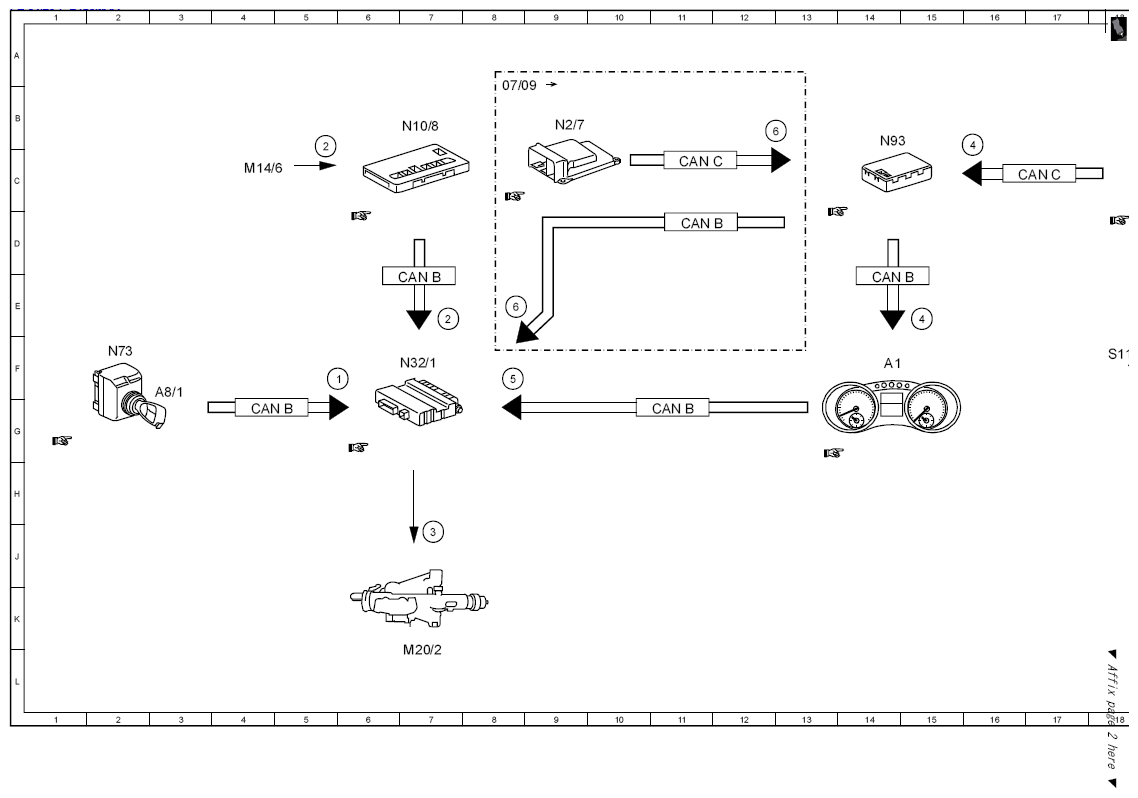

Fig 1: Steering Column Easy Entry/Exit Adjustment Electrical Function Schematic (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Steering Column Easy Entry/Exit Adjustment Electrical Function Schematic (2 Of 2)

Courtesy of MERCEDES-BENZ USA
