Transfer case absolute sensor, component description - GF28.19-P-3201GZ

MODEL 164.1 with CODE (430) Offroad package up to Model Year 8

MODEL 164.8 with CODE (430) Offroad package up to Model Year 8

Location

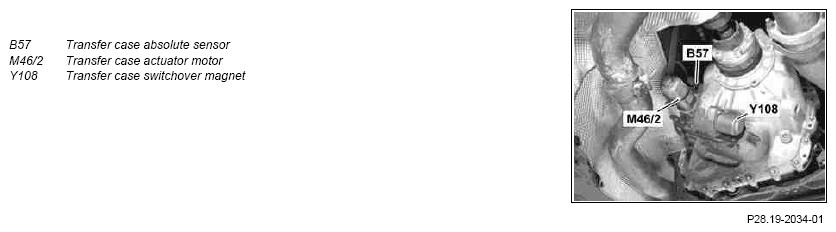

Fig 1: Identifying Transfer Case Absolute Sensor Components

Courtesy of MERCEDES-BENZ USA

The transfer case absolute sensor is screwed into the rear housing half of the transfer case on the left in the direction of travel.

Task

The transfer case absolute sensor registers the position of the "High/Low" shift fork in the transfer case and forwards the information to the transfer case control unit (N15/7).

Design

The transfer case absolute sensor is a turning angle sensor.
