Install windshield - AR67.10-P-1503-01RT

MODEL 164

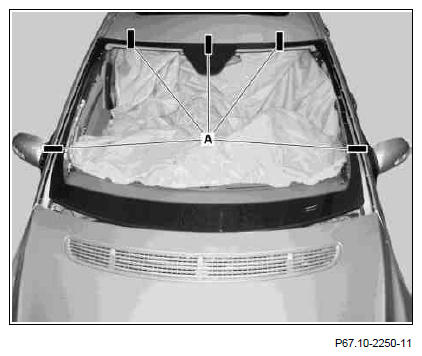

Fig 1: Identifying Adhesive Tape Area Of Windshield

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Install windshield within 5 minutes after applying adhesive material on body side to adhesive bead. Otherwise adhesive force of glue starts to decrease.

The hood must be closed.

Position cup suction tool on windshield and center windshield with aid of helper in body opening. Cup suction tool/suspension equipment (for window removal/installation).

Check alignment of windshield again and carefully reposition if necessary.

Secure windshield against slipping using fabric adhesive tape in area (A).

Carefully remove cup suction tool.

Immediately remove contamination caused by the adhesive.
