Speaker system, component description - GF82.62-P-4220GZ

MODEL 164 with CODE (494) USA version with CODE (528) HIGH Class USA with CODE (530) COMAND APS USA (with navigation system) with CODE (810) Sound system with CODE (359) TELE AID emergency call system

Illustrated BR164.1 with TELE AID emergency call system (code 359)

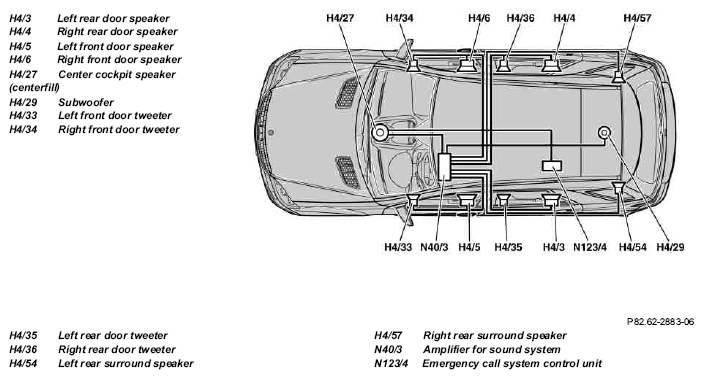

Fig 1: Identifying Speaker System Components Location (With TELE AID Emergency Call System)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Illustrated BR164.1 with Sound system (code 810) and TELE AID emergency call system (code 359)

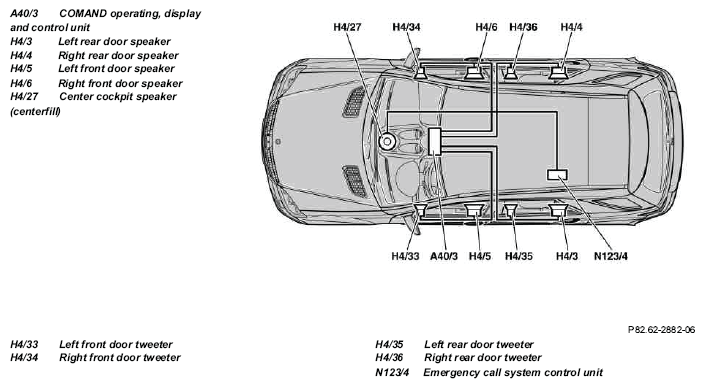

Fig 2: Identifying Speaker System Components Location (With Sound System)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
