Remove/install injection system control unit - AR07.08-P-7008GZS (ML63 AMG)
ENGINE 156 in MODEL 164
| Remove/install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | All models | AH54.00-P-0001-01A | |
| 1.1 | Read out coding of ME-SFI [ME] control unit (N3/10) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnostic system | *WH58.30-Z-1048-13A | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 2 | Raise vehicle with lifting platform | AR00.60-P-1000GZ | |
| 3 | Remove the right front wheel | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050Z | ||
| 4 | Remove rear section of fender liner in front fender on the right | AR88.10-P-1300GZ | |

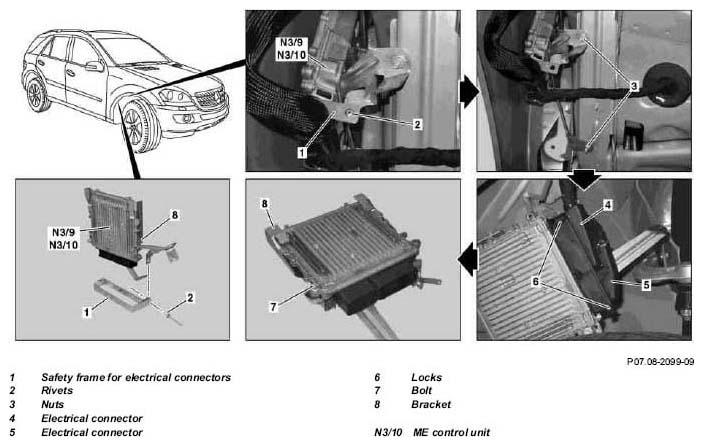

| 5 | Bore out rivet (2) and remove safety frame for electrical connectors (1) | ||
| *WE58.40-Z-1003-14A | |||

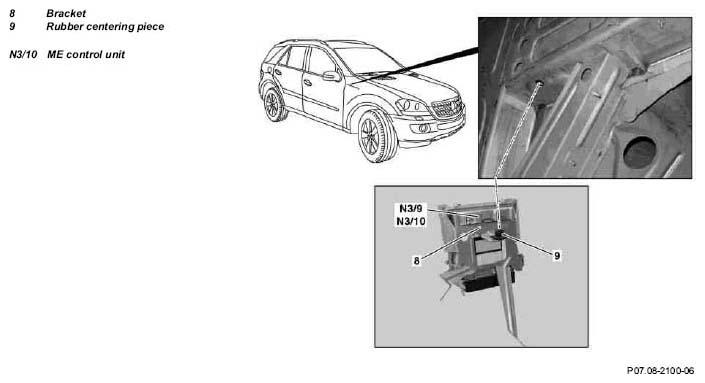

| 6 | Unscrew nuts (3) and remove bracket (8) along with ME-SFI [ME] control unit (N3/10) | ||
| 7 | Disconnect electrical connectors (4, 5) at ME-SFI [ME] control unit (N3/10) | ||
| 8 | Remove bolt (7) and pull control unit out of bracket (8) | ||
| 9 | Install in the reverse order | ||
| 10.1 | Code ME control unit (N3/10) | ||
| STAR DIAGNOSIS diagnostic system | *WH58.30-Z-1048-13A |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnostic system, Compact Passenger Car | 6511 1801 00 |
WORKSHOP EQUIPMENT
| WE58.40-Z-1003-14A | Blind rivet tool |
