Remove/install injection system control unit - AR07.08-P-7008GZ (ML500)

ENGINE 113.964 in MODEL 164.175

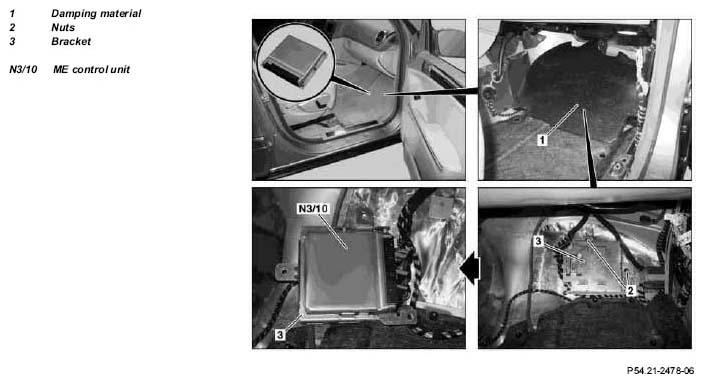

Fig 1: Identifying Damping Material, ME Control Unit And Nuts With Bracket

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge	All models	AH54.00-P-0001-01A
1.1	Read out coding of ME-SFI [ME] control unit (N3/10)	Only when replacing the ME control unit and if it can be still read out with STAR DIAGNOSIS.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnostic system	*WH58.30-Z-1048-13A
2	Remove right front floor covering		AR68.20-P-2070GZ
3	Remove vapor barrier (1)
4	Unscrew nuts (2) and remove the bracket (3) together with the ME control unit
5	Separate the electrical connectors from the ME control unit (N3/10)
6	Pull out the ME control unit from the bracket (3)
7	Install in the reverse order
8.1	Code the ME control unit	Only when installing a new ME control unit.
		STAR DIAGNOSIS diagnostic system	*WH58.30-Z-1048-13A

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnostic system, Compact Passenger Car	6511 1801 00
