ME-SFI part load/full load operation - function - GF07.61-P-3016BK

ENGINE 113.967 in MODEL 219

ENGINE 113.964 in MODEL 164.1

ENGINE 113.971 in MODEL 251

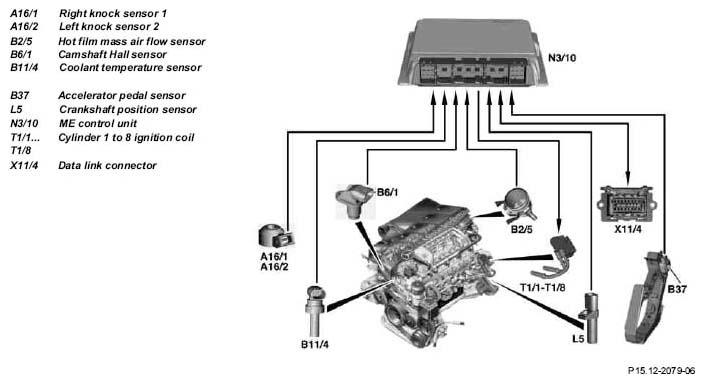

Fig 1: ME-SFI Part Load/Full Load - Function Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The particular quantity of fuel is metered to the engine in line with the performance map. The fuel quantity depends on:

Coolant temperature
Intake air temperature (only in warming-up phase)
Engine speed
Engine load
Closed-loop mixture control
Intake manifold length
Ignition angle.

Part load operation: When the engine is at operating temperature optimal emission levels and good fuel consumption are assured in combination with the lambda control.

Full load operation: Maximum engine torque is produced at a pedal value of > 90%. The injection time is extended accordingly for this purpose.

	Component description for the engine electronics control unit		GF07.61-P-6000BK
	Component description for the crankshaft position sensor		GF07.04-P-6010BK
	Component description for the camshaft Hall sensor		GF07.04-P-6020BK
	Component description for the hot film MAF sensor		GF07.07-P-6000BK
	Component description for the knock sensor		GF07.04-P-6030BK
	Component description for the coolant temperature sensor		GF07.04-P-6040BK
	Component description for the variable intake manifold switchover valve		GF09.20-P-6001BK
	Component description for the fuel injection valves		GF07.03-P-6010BK
