Voice control system (VCS), arrangement of components - GF82.70-P-0002-01GZ

Shown on model 164.8

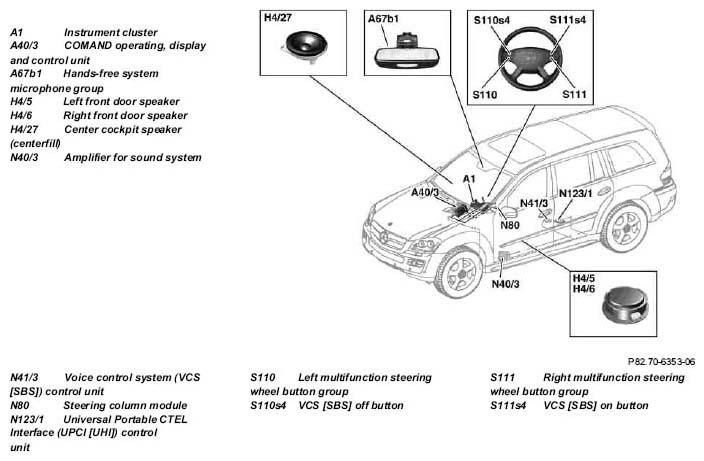

Fig 1: Identifying Voice Control System (VCS) Components Location
G05260279Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
