Remove/install restraint systems control unit - AR91.60-P-0624CW

MODEL 204, 207

Shown with model 204.0

Fig 1: Identifying Restraint Systems Control Unit Remove/Install Components - Shown On Model 204.0

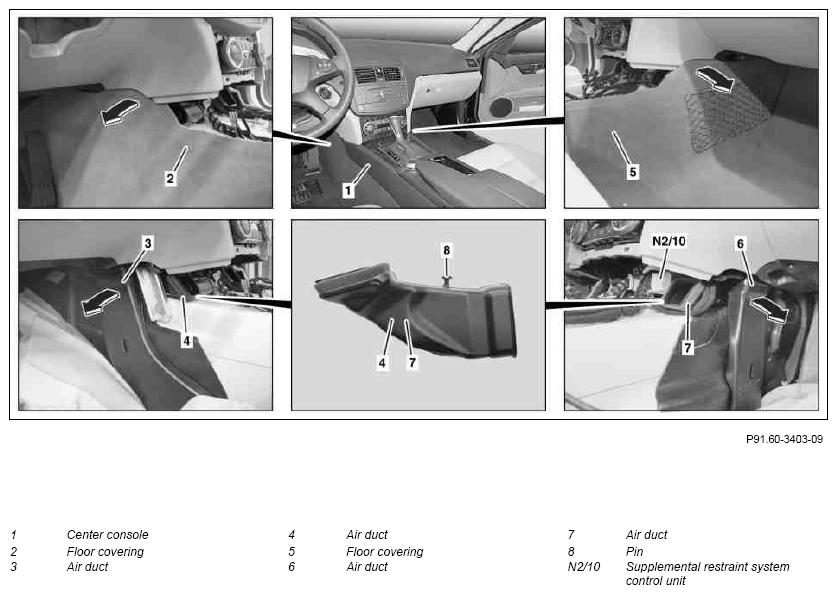

G10003709Courtesy of MERCEDES-BENZ USA

Shown with model 204.0

Fig 2: Identifying Restraint Systems Control Unit Remove/Install Components - Shown On Model 204.0

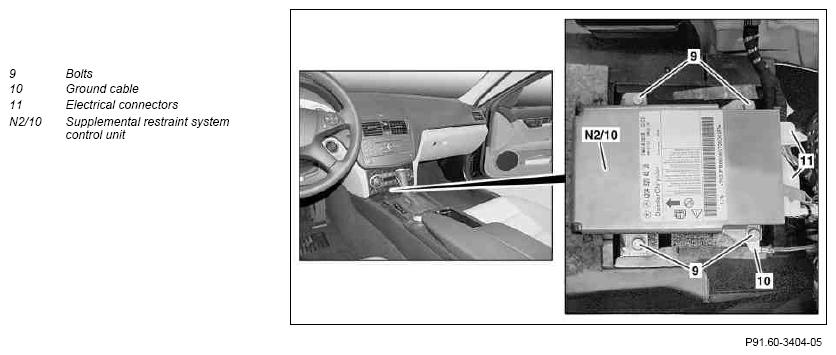

G10003710Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units. Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. AS91.00-Z-0001-01A
NOTES Notes on performing repair, body work and welding on vehicles with airbags and RTE units   AH91.00-P-0002-01M
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
IMPORTANT Assessment of airbag and belt tensioner units in accident vehicles   AH91.00-P-0006-01B
1 Remove center console (1)   AR68.20-P-2000CW
2 Disconnect battery ground line MODEL 207 AR54.10-P-0003EW
MODEL 204 AR54.10-P-0003CW
3 Maneuver floor coverings (2, 5) out beneath the instrument panel
4 Detach air ducts (3, 6) from air conditioner housing and swivel to side
5 Detach air ducts (4, 7) from air conditioner housing and remove INSTALLATION IMPORTANT Ensure that pin (8) is seated correctly in instrument panel.
6 Disconnect electrical connectors (11)
7.1 Lift insulation above supplemental restraint system control unit (N2/10) at side MODEL 204 with ENGINE 651
IMPORTANT Until screw/bolt (9) is accessible.

7.2 Lift insulation above supplemental restraint system control unit (N2/10) at side and slide toward rear MODEL 207 with ENGINE 651
IMPORTANT Until screw/bolt (9) is accessible.

8 Remove screws/bolts (9) and remove supplemental restraint system control unit (N2/10) INSTALLATION IMPORTANT Ensure that ground line (10) of ground point is seated correctly supplemental restraint system control unit (N2/10).
TORQUE SPECIFICATION Bolt/nut, restraint systems control unit to vehicle floor *BA91.60-P-1009-01M
9 Install in the reverse order
10 Connect Star Diagnosis and perform initial startup of supplemental restraint system control unit (N2/10) When replacing the supplemental restraint system control unit (N2/10).
REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04A
AIRBAG

Number Designation MODEL 204.0/2/9 MODEL 204.3
BA91.60-P-1009-01M Bolt/nut, restraint systems control unit to vehicle floor Nm 10 10
AIRBAG

Number Designation MODEL 207
BA91.60-P-1009-01M Bolt/nut, restraint systems control unit to vehicle floor Nm 10
