Transfer case absolute sensor, component description - GF28.19-P-3201GZ
MODEL 164.1 with CODE (430) Offroad package
MODEL 164.8 with CODE (430) Offroad package
Location

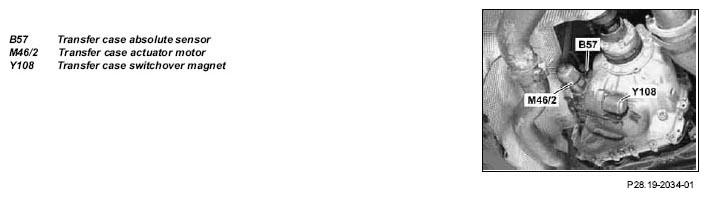

Fig 1: Identifying Transfer Case Absolute Sensor, Transfer Case Actuator Motor And Transfer Case Switchover Magnet
The transfer case absolute sensor is screwed into the rear housing half of the transfer case on the left in the direction of travel.
Task
The transfer case absolute sensor registers the position of the "High/Low" shift fork in the transfer case and forwards the information to the transfer case control unit (N15/7).
Design
The transfer case absolute sensor is a turning angle sensor.
