Auto button, location/task/function - GF83.40-P-2147R

MODEL 230.4

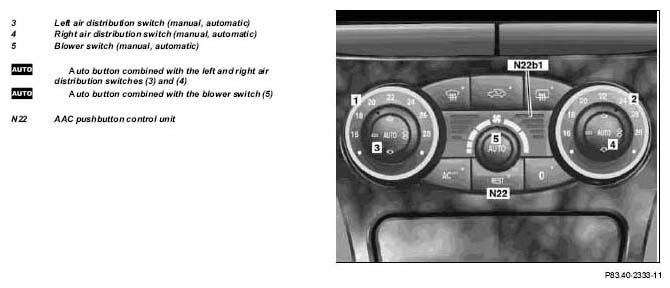

Fig 1: Identifying Auto Button Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Auto button, location	The Auto button ( ) is located on the air distribution switches (3, 4) of the AAC pushbutton control unit (N22).
	Auto button, purpose	Pressing the Auto button ( ) activates the automatic mode.
	Auto button, function		GF83.40-P-2106-01R
