WSS control unit, location/task - GF91.60-P-4105QM: Notes

MODEL 209.3 /4 as of 1.6.04 with CODE (494a) USA version

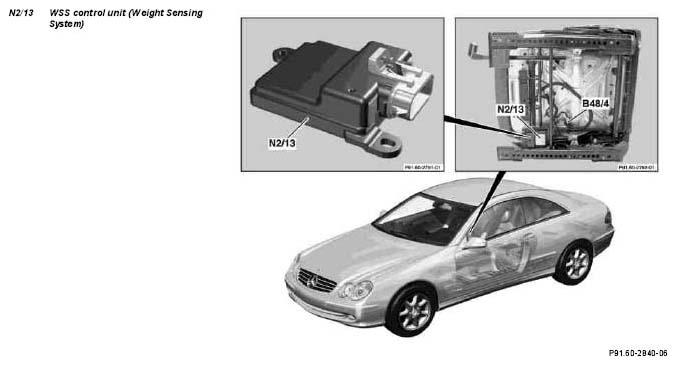

Fig 1: Identifying WSS Control Unit Location
G04960707
  WSS control unit, location The WSS (Weight Sensing System) control unit (N2/13) is mounted on the seat frame of the front passenger seat.
  WSS control unit, task   GF91.60-P-4105-02QM
