Store seat position, function - GF91.29-P-2004Q

MODELS 209.3 /4

with CODE (275c) Electric adjustable driver seat, steering column and exterior mirrors with memory

with CODE (242b) Electric adjustable front passenger seat with memory

Function conditions

• Valid memory block numbers (driver-side) and
• circuit 15c On and respective vehicle door open or
• terminal 15R ON or
• Circuit 15 ON

For the driver seat the set seat positions can be stored via the memory location 1, 2, 3 switch (S91/2s14) and the memory switch (S91/2s9). Whether the storage is to be key-related or not can be activated or deactivated in the instrument cluster. For each transmitter key up to 3 seat positions can be stored.

Storage of the front passenger seat positions is not key related. The memory switch locations 1, 2, 3 (S92/2s14) and the memory switch (S92/2s9) can be used to store up to a total of 3 seat positions for the front passenger seat.

There are two key actuation options available for the storing of positions:

1. Press respective memory switch (S91/2s9 or S92/2s9), hold pressed and then actuate the corresponding position key on the memory location 1, 2, 3 switch (S91/2s14 or S92/2s14).
2. Press and release memory switch (S91/2s9 or S92/2s9). Ultimately, press the corresponding position key on the memory location 1, 2, 3 switch (S91/2s14 or S92/2s14) within 3 s.

The seat positions of the driver's seat are stored in the front seat adjustment control module with memory and driver-side easy entry (N32/1). The seat positions of the front passenger's seat are stored in the front seat adjustment control module with memory and front passenger seat easy entry (N32/2).

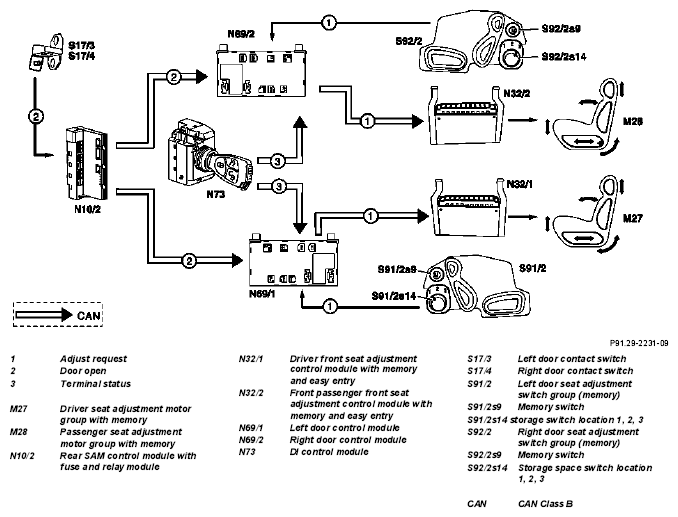

For circuit 15c On or circuit 15c Off the seat position can be stored with an opened door. The information, as to whether the door is open or closed, is sent by the left door contact switch (S17/3) or the right door contact switch (S17/4) to the rear SAM control module with fuse and relay module (N10/2), which forwards the information via the CAN Class B.

	Seat adjusting motors position measurement function		GF91.29-P-4000Q
	Front seat adjustment switch group, location/ design/function		GF91.29-P-2100Q
	Left front seat adjustment control module, with memory location/task	On vehicles with code (275c) electric adjustable driver's seat, steering column and outside rearview mirrors with memory.	GF91.29-P-2106Q
	Right front seat adjustment control module, with memory location/task	On vehicles with code (242b) electric adjustable front passenger's seat with memory.	GF91.29-P-2107Q
	Rear SAM control module with fuse and relay module, location/task	Model 209.3	GF54.21-P-4130Q
		Model 209.4	GF54.21-P-4130QA
	Electronic ignition/starter switch control module, location/purpose		GF80.57-P-4120Q
