Seat occupancy monitor with child-restraint recognition feature, location/task/design/function - GF91.60-P-4008Q: Notes

Models 209.3 /4

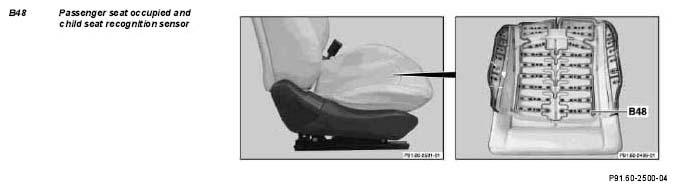

Fig 1: Identifying Seat Occupancy Monitor With Child-Restraint Recognition Feature Location

	Seat occupied recognition sensor with automatic child seat recognition, location	The front passenger seat occupied and child seat recognition sensor (B48) is integrated in the front passenger seat cushion.
	Seat occupied recognition sensor with automatic child seat recognition, task	When the front passenger seat is not occupied, the seat occupied recognition blocks the triggering of the front passenger airbag, side airbag and seat belt emergency tensioning retractor. When the child seat is in position, the automatic child seat recognition blocks the triggering of the front passenger airbag.
	Seat occupied recognition sensor with automatic child seat recognition - design		GF91.60-P-4008-02Q
	Seat occupied recognition sensor with automatic child seat recognition, function		GF91.60-P-4008-03Q
