Front seat belt tensioner, location/task/design/function - GF91.40-P-4000Q: Notes
Models 209.3 /4
Shown on model 209.3

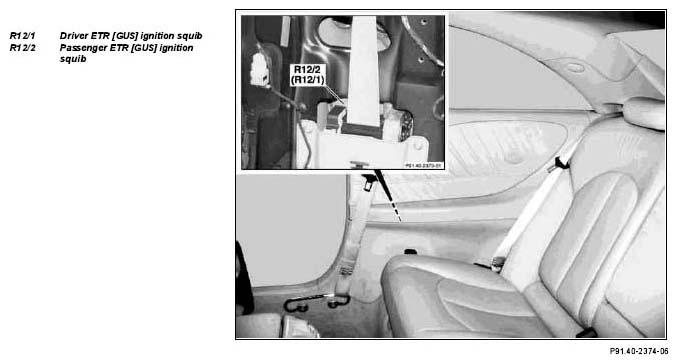

| Front emergency belt tensioner, location | The driver ETR ignition squib (R12/1) and the front passenger ETR ignition squib (R12/2) are in the B-pillars behind the paneling. | ||
| Front emergency belt tensioner - task | The ETR takes up the seat belt slack if a head on or rear end collision occurs and prevents the film reel effect of the seat belt. The tightened belt gives the passenger better protection from injury. | ||
| Front emergency belt tensioner - design | GF91.40-P-4000-02Q | ||
| Front emergency tensioning retractor, function | GF91.40-P-4000-03Q |
