Fuel Pump Control Module Connector End View (N118)

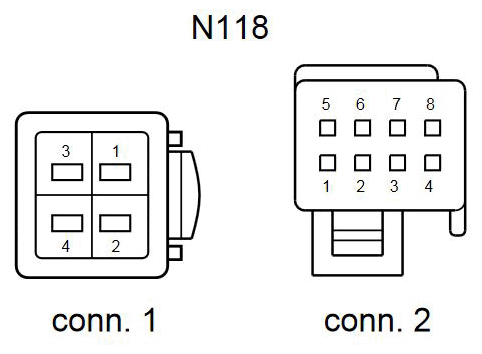

Fig 1: Fuel Pump Control Module Connector End View (N118)

G11072659

Courtesy of MERCEDES-BENZ USA
