Etc [EGS] Control Module Connector End View (N15/3)

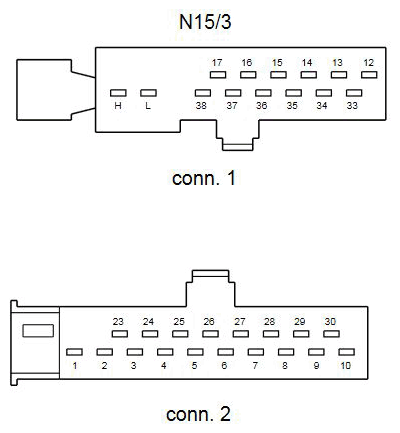

Fig 1: ETC [EGS] Control Module Connector End View (N15/3)

G11072661

Courtesy of MERCEDES-BENZ USA
