Sound amplifier, location/task/design/function - GF82.62-P-3100Q

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 203.0 /2 /7 up to 23.4.04, 209.3 /4 up to 31.5.04 with CODE (810) sound system

Shown on model 209.3

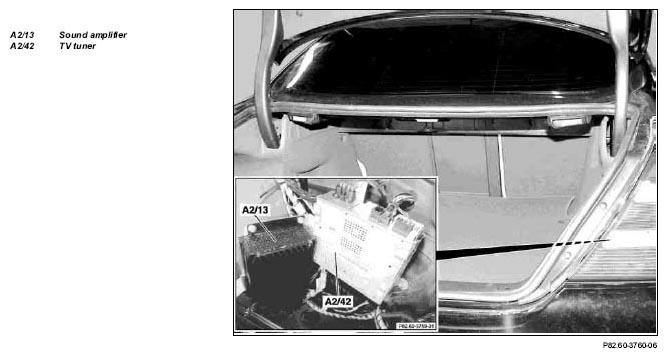

Fig 1: Identifying Sound Amplifier And TV Tuner - Shown On Model 209.3

Sound amplifier, location	The sound amplifier (A2/13) in models 209 and 203.0/2 is located at the right rear side wall of the luggage compartment. On model 203.7 the sound amplifier (A2/13) is installed behind the side paneling of the right rear seat.
Sound amplifier, purpose	Editing (sound settings) and amplification of all audio signals (radio, cassette, CD, voice output on navigation etc.).
Sound amplifier, design	Interface to digital data bus (D2B) Connection for sound amplifier microphone (B25/6) Digital filter technology 6 speaker outputs for left/right doors, centerfill, subwoofer
Sound amplifier, function		GF82.62-P-3100-04Q
