Backup wiping, function - GF82.30-P-3002PQ
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203.2 as of 24.4.04
Function prerequisites:
- Circuit 15 ON
Function

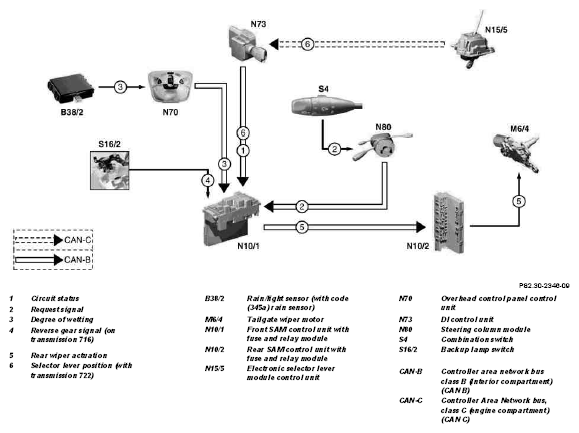

When the vehicle is reversing, the rear window wiper system (WSA) actuation depends on the position selected at the combination switch (S4) for the windshield wipers.
If the reverse gear is engaged while the windshield wiper system (WSA) is switched on, the rear-end door wiper motor (M6/4) is actuated by the rear SAM control unit with fuse and relay module (10/2) as follows:
- Continuous wipe
If the combination switch (S4) is in position "II" or "III" while the vehicle is reversing.
- Rain sensor operation
on vehicles with code (345a) rain sensor:
If the combination switch (S4) is in position "I" (windshield ) and the vehicle is reversing, then the rear-end door wiper motor (M6/4) is actuated analog to the wiper motor for the windshield.
Cancellation conditions:
- No reverse gear signal
- Front wipers switched off
| Combination switch, location/task/design/function | GF82.30-P-2100PQ | ||
| Rear-end door wiper motor, location/task | GF82.30-P-4003PP | ||
| Rain/light sensor location/task/function | On vehicles with code (345a) rain sensor | GF54.21-P-4123PQ | |
| Front SAM control unit with fuse and relay module location/task/design | GF54.21-P-4108PP | ||
| Rear SAM control unit with fuse and relay module, location / task / design / function | GF54.21-P-4115PP | ||
| Electronic ignition switch control unit, location/task/design/function | GF80.57-P-4102PP | ||
| Steering column module location/task | GF54.21-P-4125Q | ||
| Overhead control panel control unit, location/task/design | GF82.20-P-4110A |
