Speed sensor - Function - GF27.19-P-5127-02P

Transmission 722.9 in model 171.4, 203, 209, 211, 215, 219, 220, 230, 463.303/340/341 internal speed sensor

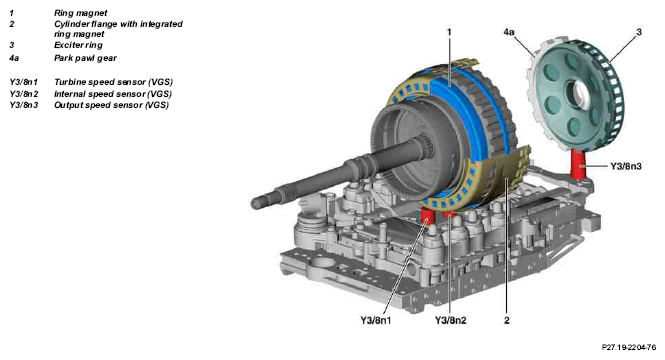

Fig 1: Identifying Internal Speed Sensor Location - Transmission 722.9
G04732557Courtesy of MERCEDES-BENZ USA

The internal speed sensor (VGS) (Y3/8n2) records the internal transmission speed at the ring gear of the front single planetary gear system for the fully integrated transmission control (VGS).

This rotational speed is processed by the fully integrated transmission control (VGS) control unit (Y3/8n4) as an input signal together with the information from the turbine speed sensor (VGS) (Y3/8n1) and the output speed sensor (VGS) (Y3/8n3). This contributes to shortening the reaction time during shift operations.
