Lower Control Field Control Module Connector End View (N72)

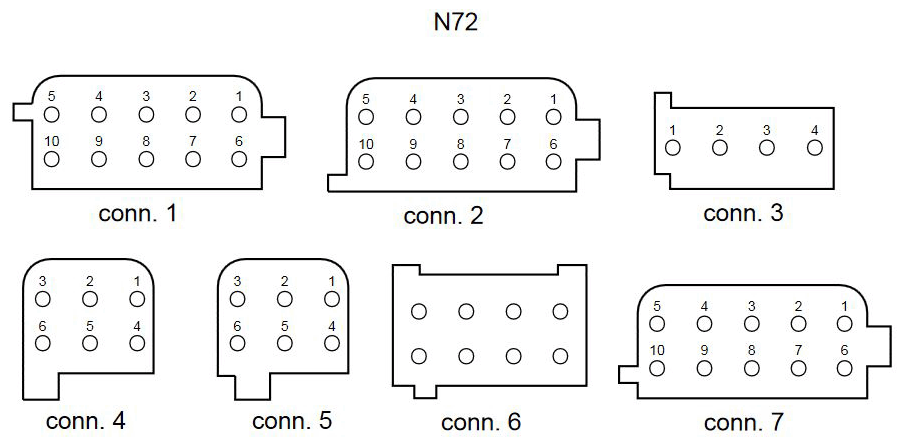

Fig 1: Lower Control Field Control Module Connector End View (N72)

G11074977

Courtesy of MERCEDES-BENZ USA
