Left Front Seat Adjustment Control Module With Memory Connector End View (N32/1)

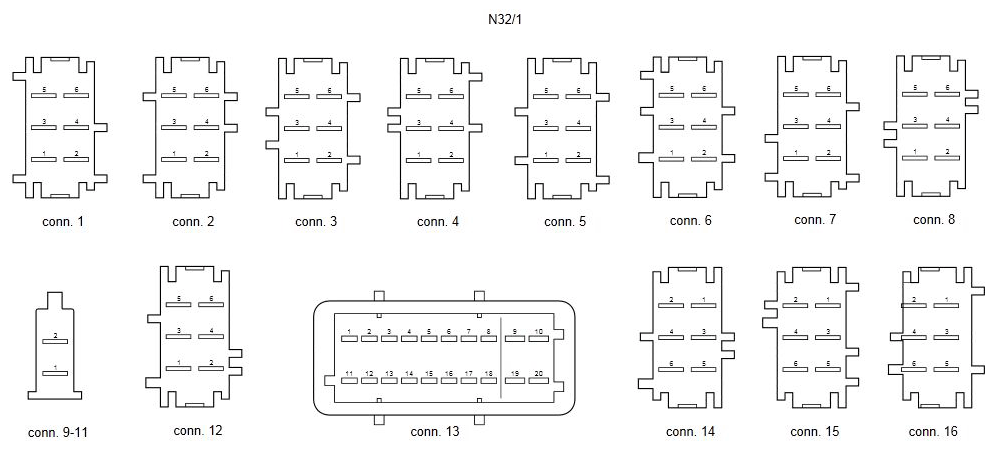

Fig 1: Left Front Seat Adjustment Control Module With Memory Connector End View (N32/1)

G11074965

Courtesy of MERCEDES-BENZ USA
