Warning indicator, location/task/design/function - GF54.65-P-4104R: Notes
MODEL 230 with CODE (220a) Parktronic system (PTS)
Warning indicator
| Warning indicator, location | GF54.65-P-4104-02R | ||
| Warning indicator, task | Displays the distance to an obstacle within the front and rear detection ranges. Below a minimum distance: Output of an audible warning signal. |
||

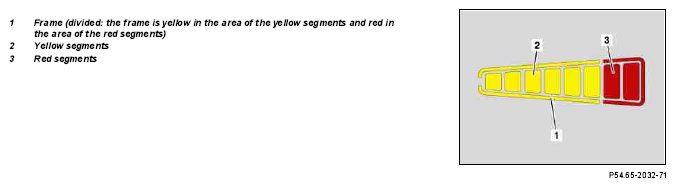

| Warning indicator, design | The warning indicators consist of the LCD bar displays with 6 yellow and 2 red segments, the frame, the sounder and the microprocessor that evaluates and converts the data telegrams from the control module. The voltage is supplied to the warning indicators via the control module. |
||
| Warning indicator, function | GF54.65-P-4104-01R |
