Rear SAM control module with fuse and relay module, location/task/design - GF54.21-P-4112R: Notes
MODEL 230

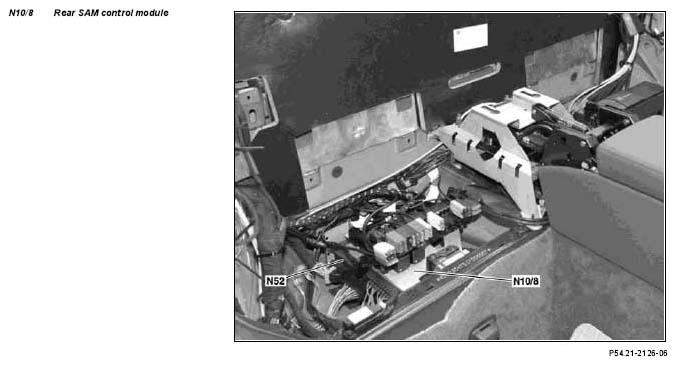

| Rear SAM control module with fuse and relay module, location | The rear SAM control module (N10/8) is located in the back of the rear passenger compartment, on the right side in the direction of travel, next to the transmission tunnel. | ||
| Rear SAM control module with fuse and relay module, task | GF54.21-P-4112-01R | ||
| Rear SAM control module with fuse and relay module, design | The rear SAM control module (N10/8) is contained in a sturdy plastic housing. Various fuses and relays are attached to the control module on a supporting bracket. |
