SOS switch, location/task/design/function - GF82.95-P-4107RM: Notes

MODEL 230.4 as of 1.7.04 with CODE (359) TELE AID emergency call system with CODE (494) USA version

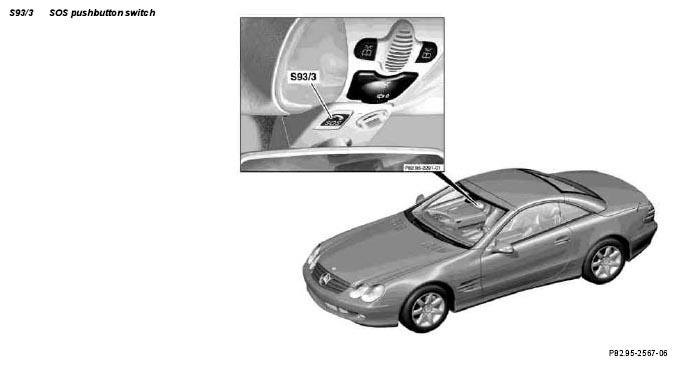

Fig 1: Identifying SOS Pushbutton Switch
G05076350
  SOS switch, location The SOS pushbutton switch (S93/3) is integrated in the overhead control panel control unit (N70).
  SOS switch, task
  • Triggering a manual TELE AID emergency call
  • Visual feedback signal of the TELE AID operating conditions (manual and automatic emergency call)

  SOS switch, design
  • Integral light emitting diodes (LEDs) for night illumination (circuit 58d) and for display of operating condition
  • Cap for protecting against unintentional actuation
  • Control resistor in parallel to the switch contact

  SOS switch, function   GF82.95-P-4107-04RM
