Position display, function - GF27.19-P-5129-03Q
Transmission 722.6 in model 209.3 (except 209.376) up to 31.05.03, 211, 230 (except 211.076, 230.474) up to 31.08.03
The position display in the instrument cluster (A1) is actuated by the ETC [ETC] control unit (N15/3) via the engine compartment CAN.
The program selection display in the instrument cluster (A1) is actuated by the electronic selector lever module control unit (N15/5) likewise via the engine compartment CAN.
The program selection performed at the transmission mode switch (S16/5) remains stored only after driving for approx. 1 minute and is then displayed again after the engine is started again. The driving time required of approx. 1 minute is due to the system.

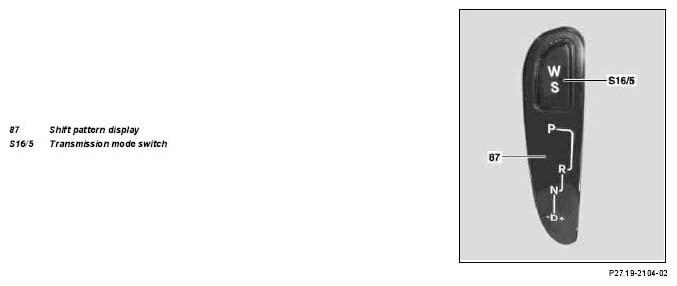

The shift pattern display (87) is illuminated when the driving lights are switched on.
Shown on model 209
