Multifunction steering wheel networking of components - GF82.90-P-0001-01RM

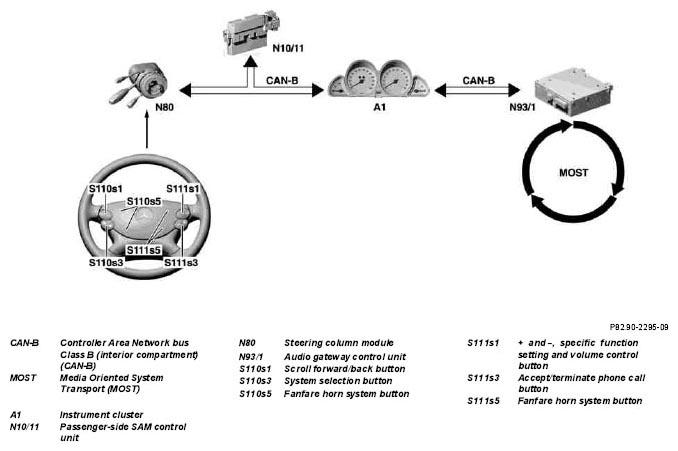

Fig 1: Identifying Multifunction Steering Wheel Networking Components

G05076305
