Supplemental restraint system (SRS), location of components - GF91.60-P-0002-01SX

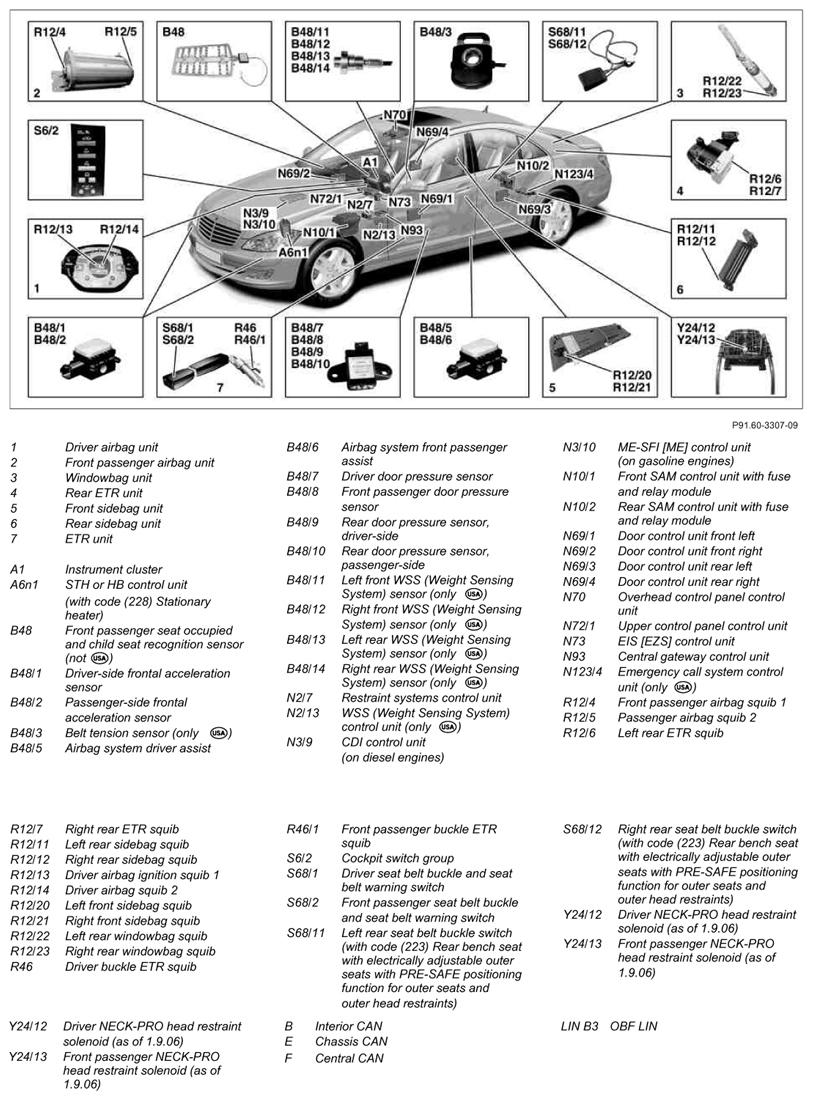

Fig 1: Locating Supplemental Restraint System Components

G07601757

Courtesy of MERCEDES-BENZ USA
