Remove/install sensor for sidebag/windowbag - AR91.60-P-0730SXS

MODEL 221.1 with CODE (Z07) Top protection

Illustrated on right side of vehicle.

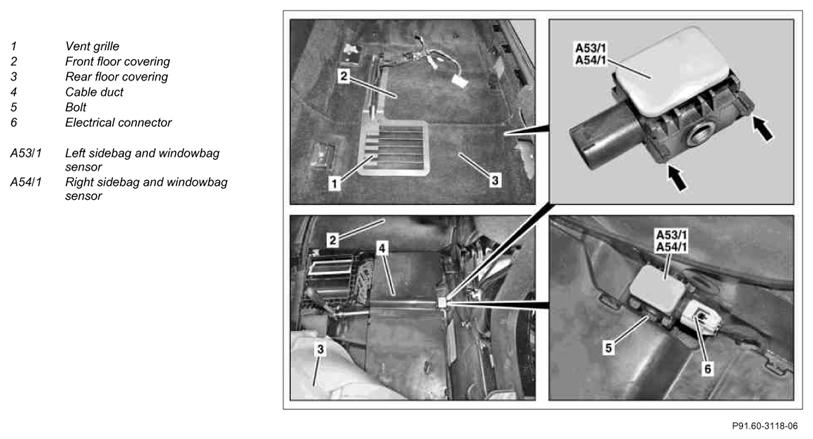

Fig 1: Identifying Sidebag/Windowbag Sensor Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove left or right front seat		AR91.10-P-1000SX
2	Remove rear passenger compartment side trim panel		AR68.30-P-4780SXS
3	Connect ground line to starter battery and to on-board electrical system battery		AR54.10-P-0003SX
4	Remove vent grille (1)
5	Pull rear floor covering (3) under the trim on the B-pillar and release in the area of the rear seat, then fold back the rear floor covering (3) as far as possible
6	Remove cover from cable duct (4)
7	Raise cable duct (4) and undo screw (5) on left sidebag and windowbag sensor (A53/1) or on the right sidebag and windowbag sensor (A54/1)		*BA91.60-P-1005-01L
8	Detach electrical connector (6) and remove left sidebag and windowbag sensor (A53/1) or right sidebag and windowbag sensor (A54/1)	Installation:  Insert the journals (arrows) on the left sidebag and windowbag sensor (A53/1) or on the right sidebag and windowbag sensor (A54/1) into the inner longitudinal member.
9	Install in the reverse order
10.1	Check supplemental restraint system (SRS) with STAR DIAGNOSIS	After replacing the left sidebag and windowbag sensor (A53/1) or right sidebag and windowbag sensor (A54/1).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
