Remove/install driver kneebag - AR91.60-P-0200SX
MODEL 216, 221 as of 1.9.08 with CODE (294) Kneebag
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags or emergency tensioning retractor units | AH91.00-P-0002-01M | ||
| Assessment of airbag and emergency tensioning retractor units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal regulations on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Adjust driver seat and steering column all the way back | ||
| 2 | Connect ground line to starter battery and to on-board electrical system battery | AR54.10-P-0003SX | |
| 3 | Remove cover under dashboard (6) | AR68.10-P-1500SX | |

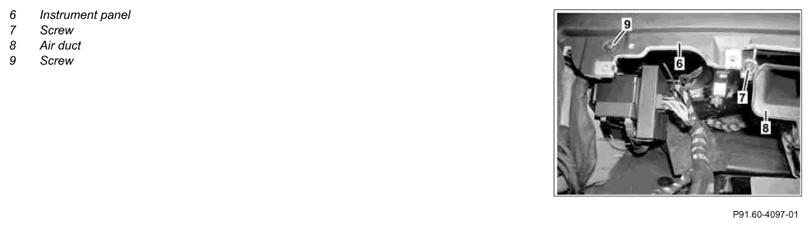

| 4 | Remove screw/bolt (7) at air duct (8) | ||
| 5 | Remove air duct (8) from air conditioner housing | ||
| 6 | Remove electric parking brake switch (S76/15) | AR42.20-P-0505SX | |
| 7 | Remove screw/bolt (9) at instrument panel (6) | ||
| 8 | Remove screw/bolt (5) at support (4) of instrument panel (6) | Only on model 221. | |

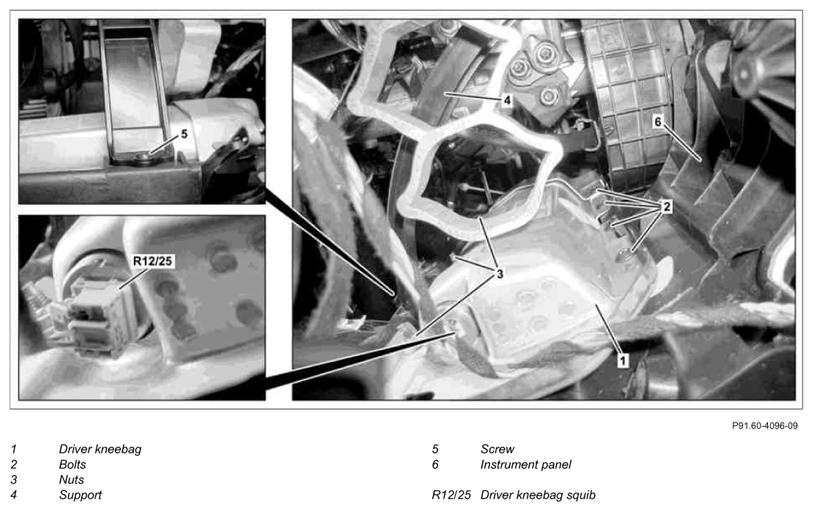

| 9 | Disconnect driver kneebag squib electrical connectors (R12/25) | Fig 4 | |
| 10 | Unscrew nuts (3) | ||
| *BA91.60-P-1013-01L | |||
| *BA91.60-P-1015-01L | |||
| Fig 3 | |||
| 11 | Remove bolts (2) | *BA91.60-P-1015-01L | |
| Fig 3 | |||
| 12 | Remove driver kneebag (1) from instrument panel (6) | ||
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| 13 | Install in the reverse order | ||
| 14 | Check supplemental restraint system (SRS) with STAR DIAGNOSIS | Only when replacing driver kneebag (1) | AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | Model 216 | Model 221 | |
|---|---|---|---|---|
| BA91.60-P-1013-01L | Nut, left knee airbag to dashboard at bottom | Nm | 7 | 7 |
| BA91.60-P-1015-01L | Screw/bolt, driver kneebag at instrument panel at bottom | Nm | 2.5 | 2.5 |
