Windowbag component description - GF91.60-P-4041SX
MODEL 216.3, 221.0 /1 up to Model Year 8
Shown on model 221.0

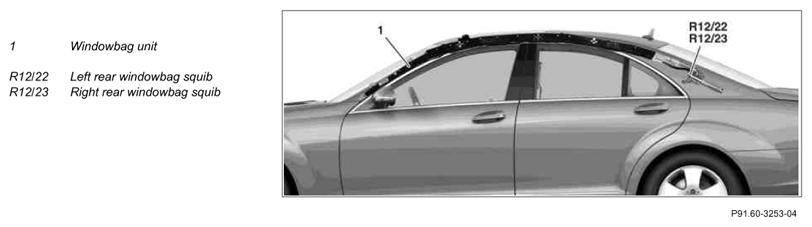

Location
The windowbag unit is located along the left and right roof paneling beneath the headliner.
Task
The windowbag units protect the occupants from injury in the event of a side impact or a rollover in the area of the windows from the A-pillar to the C-pillar.
Deployment takes place by means of ignition of the relevant squib by the restraint systems control unit (N2/7).
