Supplemental restraint system (SRS), component networking - GF91.60-P-0002-02SX

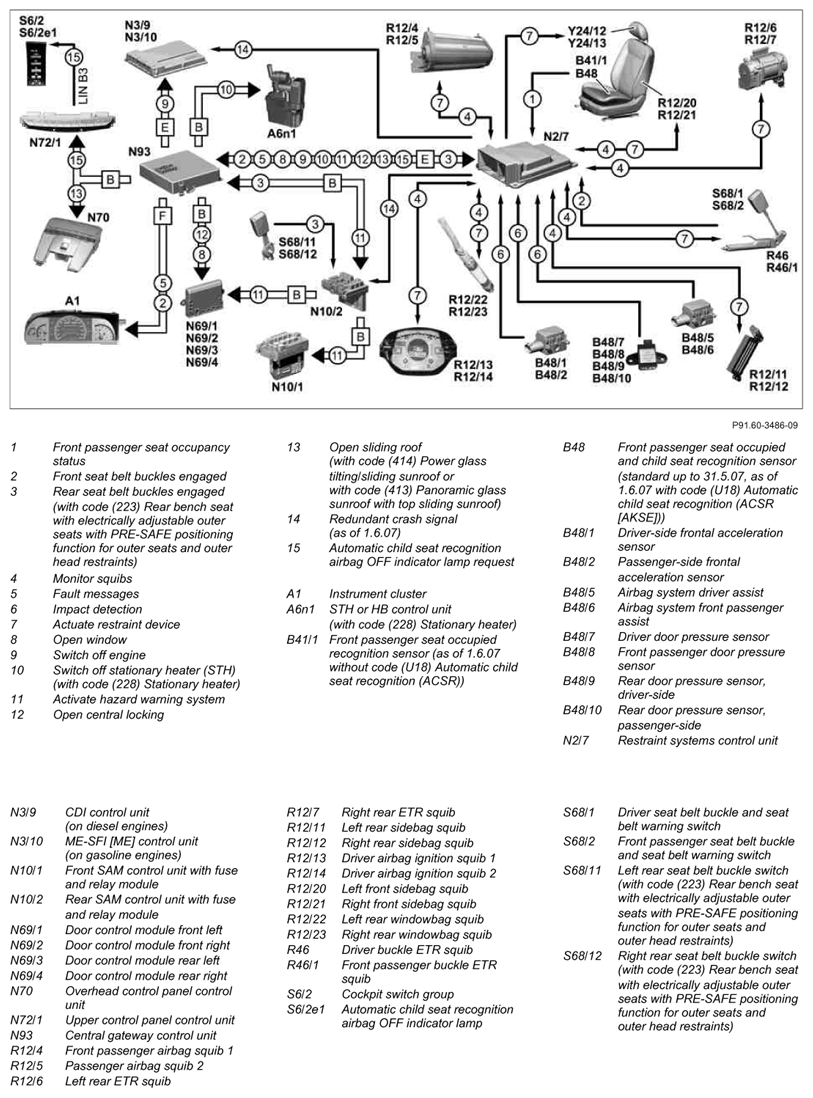

Fig 1: Networking Supplemental Restraint System Components

G07601758

Courtesy of MERCEDES-BENZ USA
