Store seat position, function - GF91.29-P-2004SXA

MODEL 221.0 /1 with CODE (223) Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints with CODE (276) Memory in rear up to Model Year 8 Fondsitze

Shown on vehicle up to 31.5.07

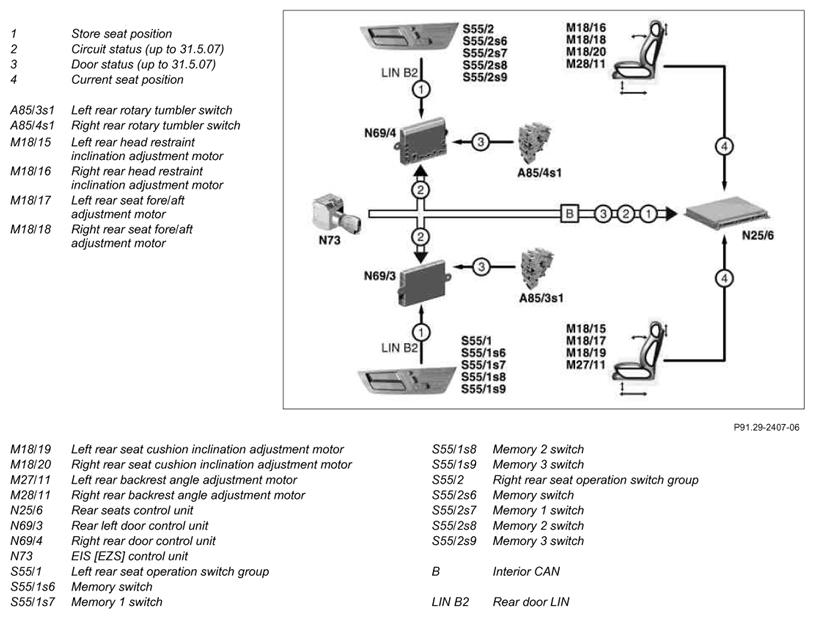

Fig 1: Store Seat Position Function Diagram

Courtesy of MERCEDES-BENZ USA

Function requirements

• Circuit 15R On or respective door open (up to 31.5.07)

Function

Three seat adjustments each can be stored for left and right.

There are two means of storing the positions:

• Press and hold the memory switch and parallel to this operate memory 1, 2 or 3 switch briefly or
• Press the memory switch for at least 40 ms and briefly press the memory 1, 2 or 3 switch within 3 s.

The request is read in over the rear door LIN from the respective door control unit and placed on the interior CAN. The seat adjustments are stored in the rear seats control unit.
